Features

• 13-element 8: 1 zoom high-resolution optic system
• Beam aperture: 6.7° to 53°
• Total luminaire output: up to 19,000 lumens
• Colour temperature output: 7000 K
• CRI: greater than 70
• Flicker-free source
• Moving-head range: 540° (pan), 270° (tilt)
• CMY colour mixing
• Variable CTO
• Fixed colour wheel with seven complementary colours
• Gobo wheel with 7 glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Gobo diameter: 25.0 mm
• Image diameter: 20.0 mm
• Gobo thickness: 1.1 mm
• 4 individually positionable shutter blades
• Rotation of the framing system module: +/- 45°
• Iris range: 15% to 100% open
• Light frost filter (Heavy frost filter in option)
• Graphic animation effect-wheel
• 5-facet circular rotating prism
• Electronic dimmer
• Sparkle Effect
• Strobe: 1 to 25 flashes per second
• powerCON TRUE1 In and Thru
• DMX: XLR 5-pin cable, RJ45 or Wireless
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• Choice of 3 DMX modes (from 34 to 56 DMX channels)
• 100 to 240 Volts – 50/60 Hz
• Power: 550 W maximum
• IP20 protection rating
• Exterior finish: black (Carbon)
• Operating Range: -10ºC to 45°C (14ºF to 113°F)
• Minimum usage distance: 1.5 m (4.92 ft)
• Dimensions (l x h x d): 365 x 591 x 212 mm
• Weight: 21.8 kg

Description

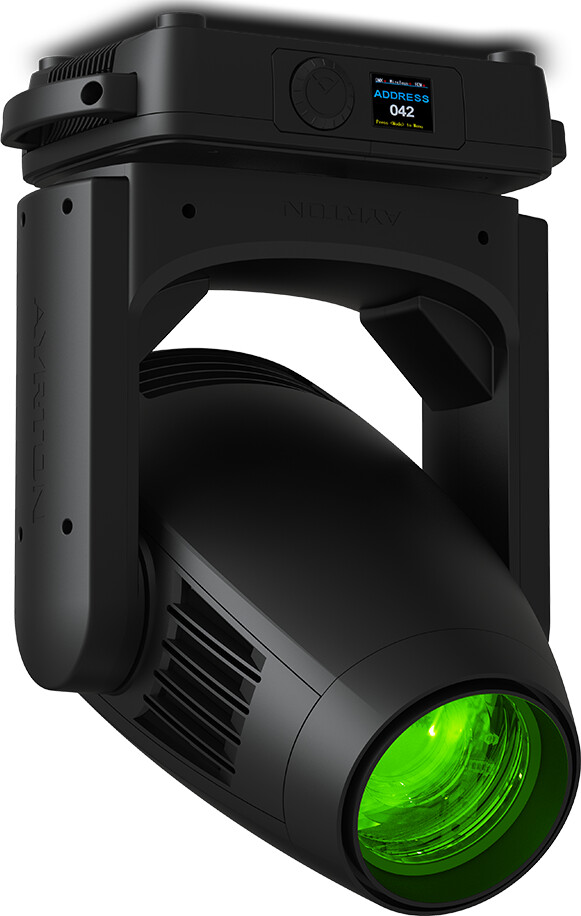

AYRTON’s latest innovation, DIABLO-S, is a versatile, feature-rich 300 W profile luminaire based on the ultra-compact MISTRAL format. The company has taken on the ambitious challenge of making DIABLO-S the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, DIABLO-S is a powerhouse of technology that will tempt the most demanding lighting designers. To achieve its objective, AYRTON has miniaturised the framing system while maximizing the performance level. As in other profile luminaires of the product line, the framing section allows accurate positioning of its four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. A new ultra-compact high-output 550 W power supply feeds eight additional motors in the framing system, fitting into the original MISTRAL format.

DIABLO-S borrows the same 13-element proprietary optical system delivering an 8:1 zoom ratio with a zoom range of 6.7° to 53°. The 119 mm frontal lens can produce an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle. DIABLO-S, specially designed for stage applications, is equipped with a monochromatic LED light source that can generate extremely high output and metallic white light calibrated at 6500 K. Fully equipped at the factory, DIABLO-S includes a CMY colour mixing system combined with a progressive CTO and a wheel with seven complementary colours that produces an infinite palette of bright pastels and saturated colours. The effects section includes a wheel with seven interchangeable HD glass gobos, a continuous dynamic effects wheel, a 15-blade iris diaphragm, a heavy frost filter and a five-facet circular rotating prism. DIABLO-S has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, perfect for stage and studio applications.
