Features

• Output connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Low-cut frequency: -3 dB15 Hz
• Noise with shorted input: A-weighted0.6 µV
• Output voltage: RMS2.2V
• Output voltage: peak3.1V
• Type of electronic: circuitActive
• THD@1VRMS, 1kHz< 0.2 %
• Dynamic range: 131 dB
• Output impedance: 100 Ω
• Minimum load impedance: 2 kΩ
• Cable drive capability: 100 m (328 ft)
• Output balance: principleImpedance balancing
• Common mode: rejection ratio (CMRR)> 40 dB
• Power supply: (for full performance)48 V Phantom power (± 4 V)
• Current consumption: 3.5 mA
• ColorMatte: Black
• Diameter: 19 mm (0.75 in)
• Length: 120 cm
• Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)

Description

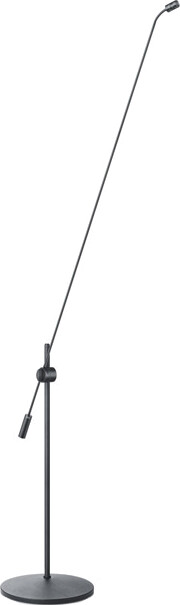

For podium or stylish floor stand applications, the d:sign™ MMP-F preamplifier series is available in different lengths and gooseneck choices.

120 cm for floor stand applications.
