Features

• Video format: 1080p 60/50/30/25 | 1080i 60/50 | 720p 60/50
• Image Sensor: 1/2.7" progressive scan CMOS sensor
• Effective Pixels (approx.): 2.07 Mega pixels
• Min. Illumination: 0.05 Lux @ (F1.8, AGC ON)
• Electronic Shutter: 1/30s ~ 1/10000s
• Zoom Ratio: 20x Optical zoom ; 16x Digital zoom
• Gamma Control: Yes
• Iris Control: Auto / Manual
• Digital Noise Reductions: 2D & 3D
• On-Screen Display (OSD): English, Simplified Chinese, Traditional Chinese
• White Balance: Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
• AGC / Gain Control: Auto / Manual (0 to 28 step) | Max. Gain Limit (6 to 28 step)
• Mirror / Flip Image: Yes
• Focus Mode: Auto / Manual
• Panning/Tilting Range: N/A
• Panning/Tilting Speed: N/A
• Preset: N/A
• Field of View: (Horizontal, Wide) Approx. 63.7° (WIDE END) / 2.3° (TELE END)
• Image Compensation: Day & Night Function
• Video Output: 3G/HD-SDI x1
• Tally LED: Dual colour (Red, Green)
• Filter: M52.0 x 0.75 Thread with UV Protection
• Protocol: VISCA, Pelco-D, Pelco-C
• Remote Control Interface & Transmit Distance: RS-485: Transmit up to 1000m
• F/W Update: Ethernet
• IR Control: N/A
• Size of Screw Hole for Tripod: Use hot shoe mount
• Weight: 0.7 kg

Description

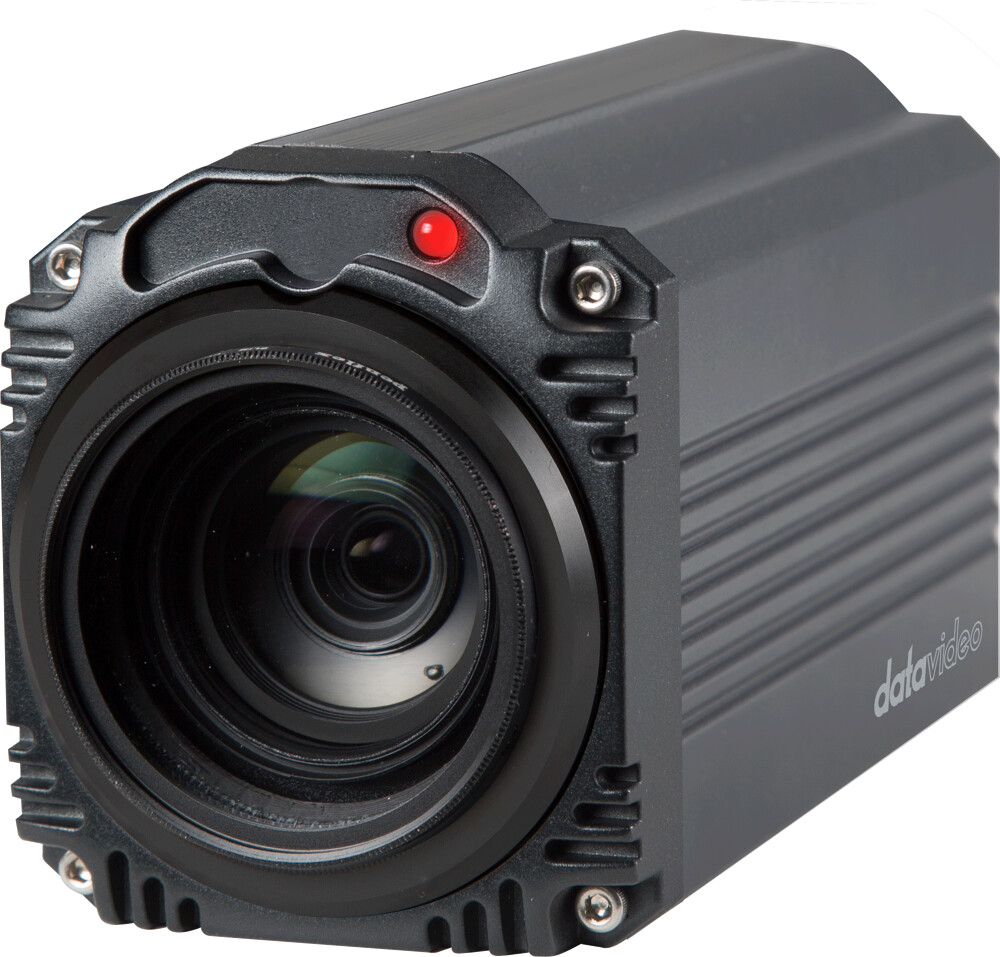

Full HD Block Camera
1080P Full HD resolution
20x optical zoom with a maximum aperture of F1.8. The camera gain setting of 0.05 LUX is sufficient for video production with a smooth PTZ control
Support PoE Technology for remote power
H.264/H.265/Motion-JPEG compression through RJ-45 connection
Stream to popular platforms such as Youtube & Facebook live.
Regular 3G SDI output for uncompressed video up to 1080P
Controllable by VISCE/Pelco-C/Pelco-D
Tally lights for broadcast level applications
The camera is only 6.4 inch long facilitating setup in all environments.
Cold shoe mount for connecting an external LED light or monitor
