Features

• Jensen transformer equipped passive DI
• Eliminates hum and buzz from ground loops
• 1/4″, 3.5mm, RCA, and XLR inputs to connect to any source
• Exceptional signal handling and noise rejection
• Weight: 0.1 kg

Description

Close

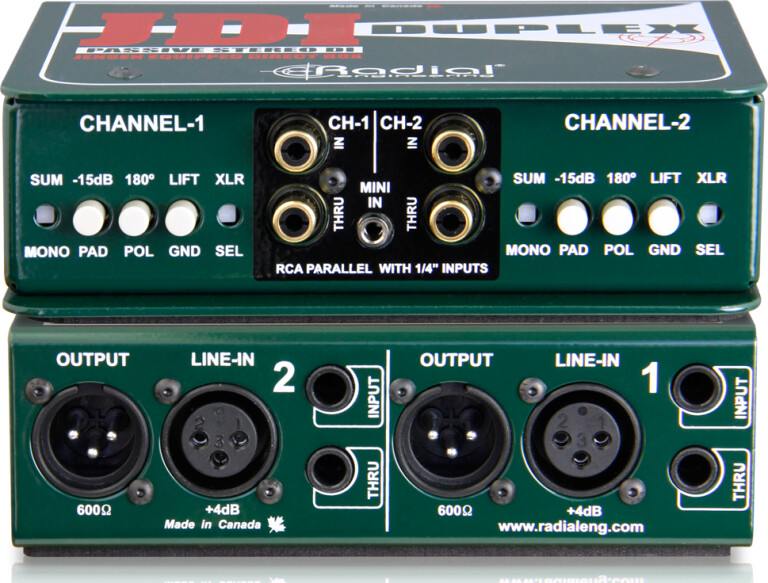

JDI Duplex
Premium Stereo Passive DI

BUY NOW
Passive Full-Featured Stereo Direct Box

The JDI Duplex is a high performance 2-channel passive direct box designed for enhanced connectivity for any application, with numerous input connector types and premium Jensen transformers for exceptional audio performance.



USER GUIDE

Photos
Jensen transformer equipped passive DI
Eliminates hum and buzz from ground loops
1/4″, 3.5mm, RCA, and XLR inputs to connect to any source
Exceptional signal handling and noise rejection
+ More Features
Unparalleled tone, multiple connector options

The JDI Duplex takes the exceptional transparency and wide bandwidth of the JDI Stereo passive direct box, and adds numerous connector types and line-level inputs to provide the audio technician with the ability to interface with any stereo sound source. Designed to handle extreme signal levels without distortion, it utilizes two world-class Jensen JT-DB-EPC audio transformers to deliver a smooth, warm sounding Bessel curve - reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI Duplex delivers the natural, pure sound of the instrument without artifact. The inputs can be accessed via 1/4", RCA, 3.5mm TRS, or XLR line-level connectors, making it easy to plug in any sound source, from stereo instruments to consumer playback equipment, or professional +4dB line-level audio equipment.
