Features

• Sensor Size: 1 Inch-Type CMOS Sensor
• Optical zoom: 15x Optical Zoom
• Focussing System: Dual Pixel CMOS Auto Focus
• Maximum resolution output: 4K UHD 30p
• Focal Length: f=8.3 – 124.5 mm, F/2.8 – 4.5,
• 35mm equivalent focal length: approx. 25.5 (W) – 382.5 mm (T)
• Angle of View Horizontal: 73.0 (W) – 5.7° (T)
• Angle of View Vertical: 45.2° (W) – 3.2° (T)
• Shutter Speed: 1/3 – 1/2000 sec. (depending on frame frequency)
• Gain: -6.0 db ～ 33.0 db
• ND Filter: Built-in (Off, 1/4, 1/16, 1/64), motor operated
• Gamma: Normal1 (Standard), Normal2 (x4.0), Normal3 (BT.709), Normal4 (x5.0), Wide DR, Canon Log 3
• 3G-SDI Formats: 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• HDMI Formats: 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit), 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• Audio Input: Dual XLR (+48v Phantom available) ϕ3.5 mm stereo mini jack
• Power Consumption for PoE+ Input: Approx. 19.6 W* max.
• Power Consumption for DC Input: Approx. 18.6 W max.
• IP Streaming Protocols: RTMP/RTMPS, NDI|HX*, RTP/RTSP, SRT, FreeD
• Dimensions (W x H x D): 200 x 269 x 208 mm (excluding protrusions)
• Weight: 5 kg

Description

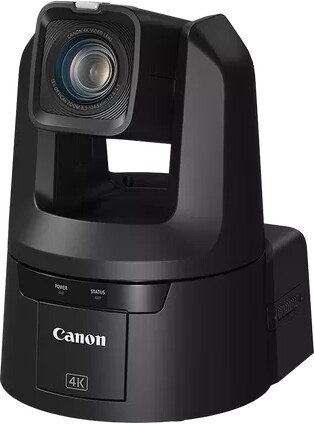

A dynamic PTZ camera aimed at productions and video streaming, the CR-N500 boasts a 1.0-type 4K UHD sensor and Dual Pixel CMOS AF, plus 15x optical zoom, smooth pan and tilt as well as image stabilisation to capture content in superb detail even in low light situations.
