Features

• Amplification class: Class D
• Output power, all channels loaded: 4 x 1000 W at 4 ohms, 4 x 1000 W at 8 ohms
• Power supply model: Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
• Mains rating: 100 V - 240 V ±10%, 50-60 Hz
• Digital Signal Processor (DSP): SHARC 32-bit, floating point, 96 kHz sampling rate
• I/O routing: Flexible 4x4 routing matrix
• Per output channel: Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters Array morphing, Air absorption compensation filters Internal IIR and FIR EQ algorithms L-DRIVE advanced system protection Output delay from 0 to 1000 ms
• Milan-AVB: 4 channels from 1 stream (of up to 8 channels)
• Milan-AVB
• 4 channels from 1 stream (of up to 8 channels)
• AES/EBU: 4 channels AES/EBU (2 x AES3) with SRC
• Analog: 4 channels
• Connections: 2 etherCON 1 Gb/s I/O+ control 4 female 3-pin XLR (2 x switching analog/AES3)4 male 3-pin XLR links

Description

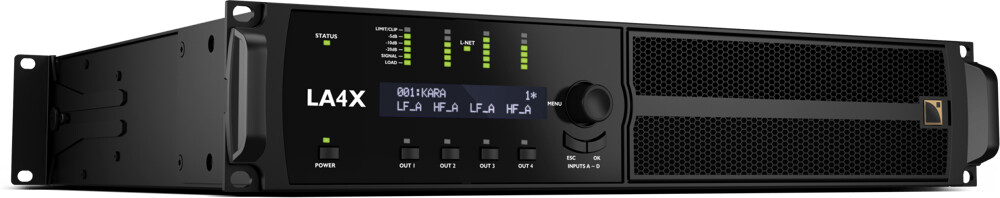

The L-Acoustics LA4X is a four-channel amplified controller designed for professional audio applications. It provides a combination of power and flexibility, making it suitable for a wide range of sound reinforcement systems. The LA4X features a 4-input, 4-output architecture, with 4 x 1000W amplification at both 8 and 4 ohms, and a universal switched-mode power supply (SMPS) with Power Factor Correction (PFC).
