Features

• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• "D-PRE" mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• High-grade effects: SPX with 24 programs
• 24-bit / 192kHz 2in / 2out USB Audio functions
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Dimensions(W×H×D): 244 mm x 71 mm x 294 mm
• Net Weight: 2.1 kg (4.63 lbs.)

Description

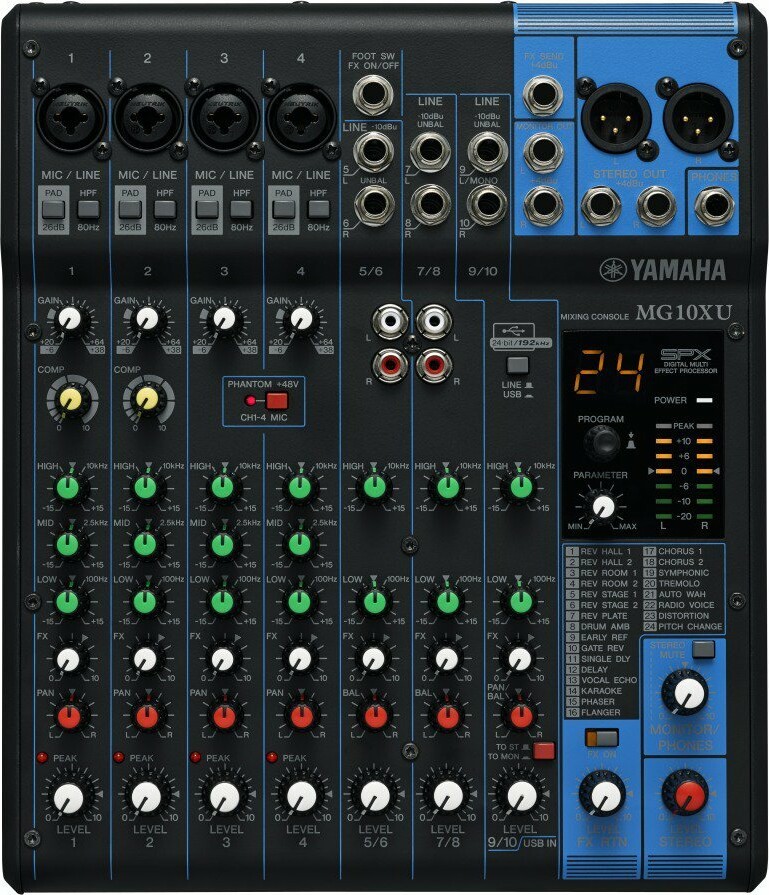

The Yamaha MG10XU is a great sounding, easy to use, mixing console featuring 4 Mic Inputs (XLR/1/4" Jack) and 3 Stereo Inputs (1/4" Jack). A built in FX processor with 24 Parameters can be edited to suit your needs, providing reverb, chorus, delay or distortion.

The Mic inputs have +48V Phantompower, 3 Band EQ, High-Pass Filter and 26dB Pad Switch.

- Channels 1 and 2 also include 1-Knob compression.

The Stereo inputs feature 2 Band EQ.
