Features

• Sensor Size: 1/2.3 in. single-plate CMOS sensor
• Optical zoom: 20x Optical Zoom
• Maximum resolution output: 4K UHD 30p
• Focal Length: f=3.67 – 73.4 mm, F/1.8 – 2.8,
• 35mm equivalent focal length: approx. 29.3 (W) – 601 mm (T)
• Angle of View Horizontal: 65.6 (W) – 3.6° (T)
• Angle of View Vertical: 39.8° (W) – 2.0° (T)
• Shutter Speed: 1/6 – 1/2000 sec. (depending on frame frequency)
• Gain: 0 db - 36.0 db
• ND Filter: Built-in (1/8 at maximum, gradation ND), motor operated
• Gamma: Normal1 (Standard), Normal3 (BT.709)
• 3G-SDI Formats: 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• HDMI Formats: 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit), 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• Audio Input: ϕ3.5 mm stereo mini jack
• Power Consumption for PoE+ Input: Approx. 16.2 W max.
• Power Consumption for DC Input: Approx. 15.0 W max.
• IP Streaming Protocols: RTMP/RTMPS, NDI|HX, RTP/RTSP, SRT, FreeD
• Dimensions (W x H x D): 154 x 178 x 164 mm (excluding protrusions)
• Weight: 2.5 kg

Description

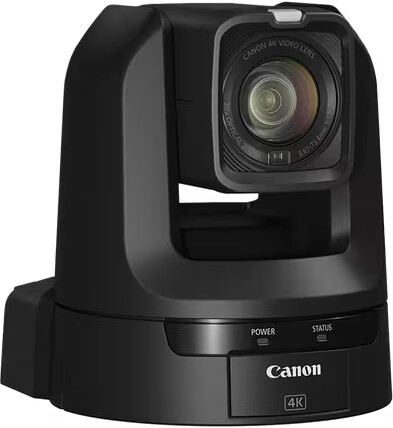

The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, as well as the ability to automate your productions using Auto Tracking App RA-AT001(Lite)*, it’s the ideal choice for a variety of productions.
