Features

• Compatible withMac / PC / iOS
• RequirementsiOS version: 10 or later. Connection / Power: Lightning & USB 2.0
• Made foriPhone 7 Plus, iPhone 7, iPhone 6s, iPhone 6, iPhone 5, iPad Pro (12.9-inch), iPad Air, iPad Air 2, iPad mini 4, iPod touch (6th gen).
• Noise floor-114 dBFS, A-weighted
• Frequency range20-22 kHz ±0.2 dB (Fs = 48 kHz). 20-40 kHz ±0.2 dB (Fs = 96 kHz)
• Total harmonic distortion (THD)THD < -100 dB, 0.001% @ 1 kHz @ -10 dBFs
• Dynamic rangeTyp. 114 dB
• Full Scale Output1 Vrms @ 0 dB Gain
• Supported sample rates44.1, 48 (default), 88.2, 96 kHz. Sample rates can be set by 3rd-party app
• Resolution24 bit
• Filter (low cut / high pass)2. Order @ 80 Hz, individual per channel
• Weight50 g (1.8 oz)
• Diameter56 mm (2.2 in)

Description

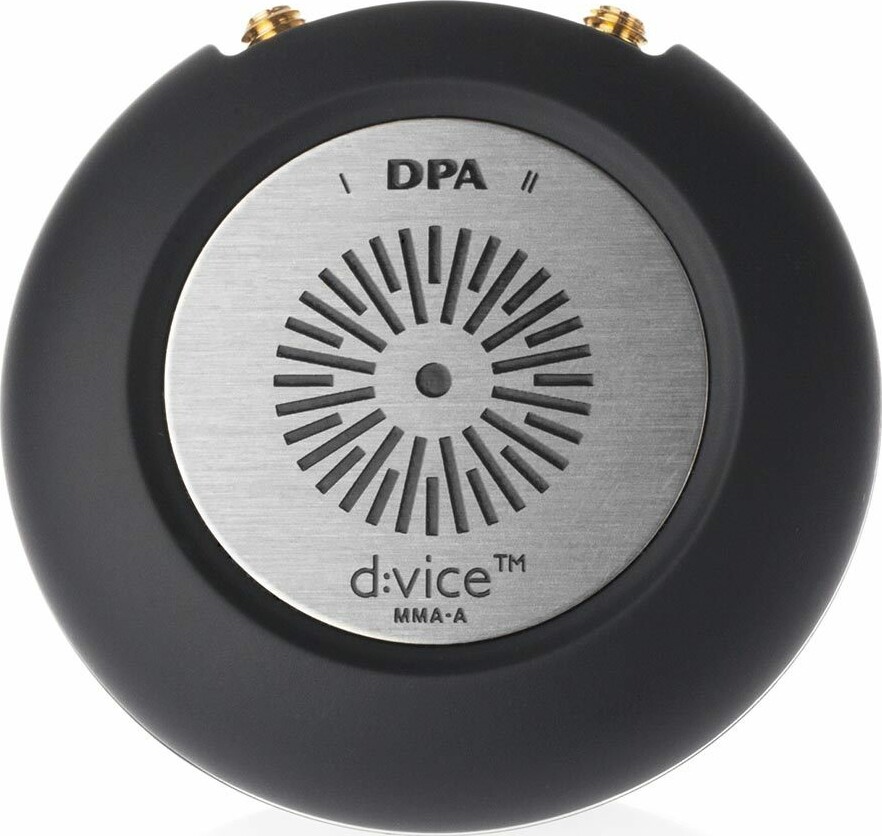

The d:vice™ MMA-A Digital Audio Interface is a high-quality, dual-channel microphone preamplifier and A/D converter that captures crystal-clear audio via your favorite recording / broadcasting apps. The d:vice™ can be used with all DPA microphones with a MicroDot connector.
