Features

• Optic System: 13-element 13:1 zoom
• Zoom aperture: 4 ° to 52 °
• Total luminaire output: up to 20,000 lumens
• Colour temperature output: 6500 K
• Variable CRI: 70 to 86
• Flicker-free source
• CMY colour mixing
• Variable CTO
• Variable CTP
• Fixed colour wheel with seven complementary colours
• Indexable rotating gobo wheel with nine high precision glass gobos
• Fixed gobo wheel with 10 high-precision glass gobos
• Gobo diameter: 18 mm
• Image diameter: 13 mm
• Gobo thickness: 1.1 mm
• 4 individually positionable shutter blades
• Rotation of the shutter blades module: +/- 90°
• Iris range: 15% to 100% open
• 2 frost filters one light, one heavy
• Graphic animation effect-wheel
• 2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
• Electronic dimmer
• Strobe: 1 to 25 flashes per second
• powerCON TRUE1 In and Thru
• DMX: XLR 5-pin cable, RJ45
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• DMX-RDM compatible
• Stand-alone mode and Main/Follows modes
• Choice of 3 DMX modes (from 34 to 56 DMX channels)
• 100 to 240 Volts – 50/60 Hz
• Power: 630 W maximum
• IP65 protection rating
• Exterior finish: black (Carbon)
• Operating Range: -20ºC to 45°C (14ºF to 113°F)
• Minimum usage distance: 3m (4.92 ft)
• Dimensions (l x h x d): 339 x 593 x 298 mm
• Weight: 23.5 kg

Description

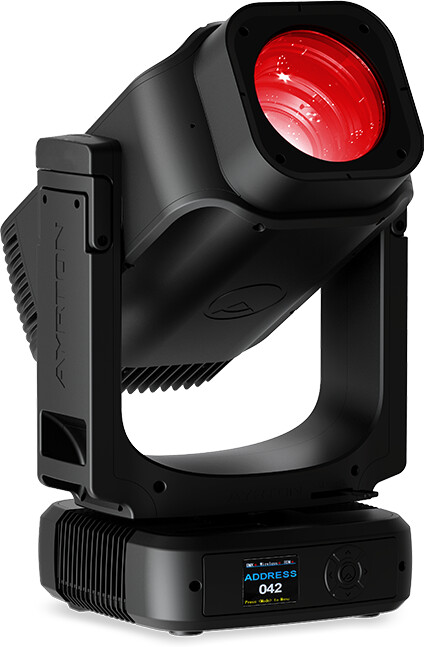

Stradale Profile embodies the principle of perfect scalability within Ayrton’s Ultimate series, standing as the first ultra-compact luminaire of the brand-new 1 Series.

Following in the footsteps of Rivale, it reduces its visual footprint by 15%, achieving this through meticulous engineering and extreme miniaturisation. Every detail was optimised—streamlining the structure, refining effect modules, and minimising component size—to push integration to new limits. This unique format led to the development of an all-new high-efficiency 330 W LED module, precisely calibrated at 6500 K, delivering a luminous output of 20,000 lm with optimal black body positioning to ensure perfectly neutral light. Designed for both indoor and outdoor use in any environment, Stradale Profile stands apart with a distinctive visual signature. Lightweight construction plays a key role in its performance—tipping the scales at just 23.5 kg, it sets an unprecedented benchmark for its category. To unlock new creative possibilities, it features infinite continuous rotation on both pan and tilt axes. Equipped with a 140 mm front lens, its proprietary 13-lens optical system delivers a remarkable 13:1 zoom ratio, with a versatile range spanning from 4 ° to 52 °.
