Features

• 1 x 50W white laser source (7,000K)
• Beam angle: 1°
• 105,000 Lux @ 10m
• 2 prism wheels with 4 rotating prisms
• Wheel 1: 8 facet circular prism
• Wheel 2: 8 facet circular, 18 facet circular, 5 facet linear
• Frost filter
• Gobo wheel: 19 static gobos + open
• Colour wheel: 12 colours + open
• 6 colour rainbow effect wheel
• DMX channels: 14 or 18 selectable
• Wireless control (W-DMX Sweden compatible transceiver)
• 3-Pin & 5-Pin XLR input/output
• 16-Bit pan/tilt positioning: Pan 540°, Tilt 220°
• 0–100% dimming
• Power consumption: 120W
• Power supply: 100~240V, 50/60Hz
• Fuse: F4A 250V
• IP rating: IP65
• Dimensions (H x W x D): 545 x 344 x 227mm
• Weight: 11.5 kg

Description

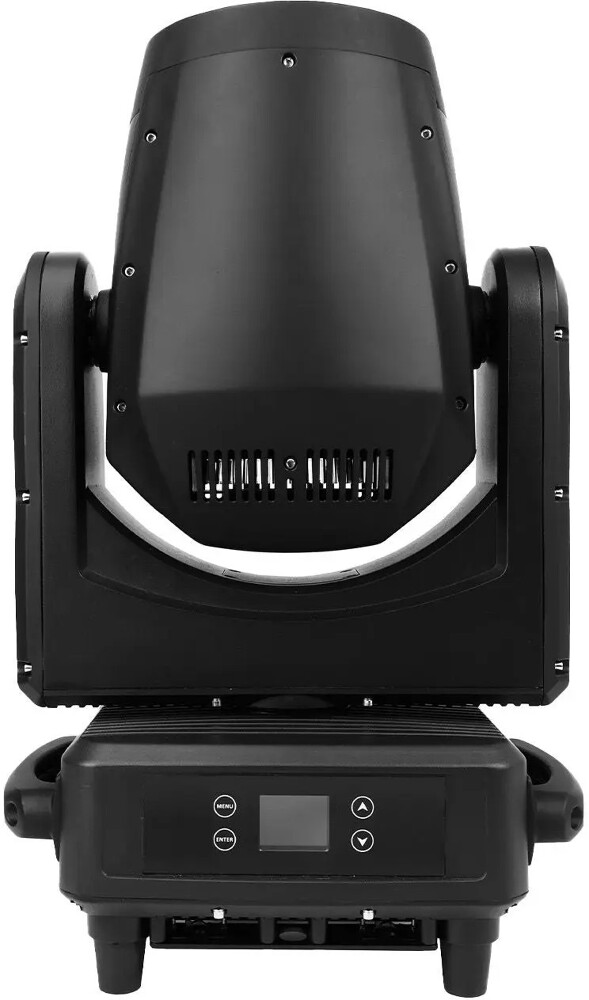

The Equinox Fusion Patriot 500 Beam is a compact yet powerful IP65-rated moving head beam designed to thrive in the toughest environments. Powered by a 50W white laser source (7000K), it delivers an intense 105,000 Lux at 10 metres through a sharp 1° beam. Packed with creative tools including 19 static gobos, a 12-colour wheel plus a rainbow effect, and two rotating prism wheels for layered aerial visuals, this fixture is ideal for professional stage and event applications. Additional features include motorised focus, frost filter, 16-bit pan/tilt with autocorrection, and selectable 14 or 18-channel DMX control. With 3/5-pin DMX, PowerTwist TR1, and quick-release omega clamps, this versatile fixture integrates seamlessly into any rig.
