Features

• LED Engine: Titan LED Engine
• Colors: RGBMintAmber
• LED Power Draw: 20 W
• Luminous Flux 2 700K : 1 124 Lumens
• CRI (Ra) / TLCI 3200 – 6500 K

• (OutputGain disabled): ≥96
• OutputGain: Yes
• Beam Angle: 12.6° – 58.5°
• Field Angle: 16.9° – 78.2°
• Strobe: 0 – 25 Hertz
• Battery Runtime: up to 20 hours
• Battery Runtime (max. Brightness): 1 h 20 m
• Charging Time (nominal): 2 h 40 m
• DC Input: PoE++
• DC Connector: RJ45
• Ethernet Port Speed: 100 Mbit/s
• Power Consumption (max.): 40 W
• Cable length: up to 100 m
• ArtNet/sACN via Ethernet
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
• Wireless Range: CRMX / UHF up to 300 m / 330 yds
Bluetooth up to 3 m / 3.3 yds
• RDM Support: via CRMX
• Infrared Control: Yes
• IP Rating unwired : IP65
• IP Rating wired: IP65
• Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
• Dimensions (H x Ø) without yoke: 136 mm x Ø 120 mm /
5.35" x Ø 4.75"
• Dimensions (L x W x D) with yoke: 241 mm x 174 mm x 125 mm /
9.48" x 6.84" x 4.93"
• Mounting Options: 1/4" – 20 UNC, 3/8" – 16 UNC thread, Yoke (with AirlineTrack, 3/8" – 16 UNC thread, 1/2" hole)
• Weight: 1.6 kg

Description

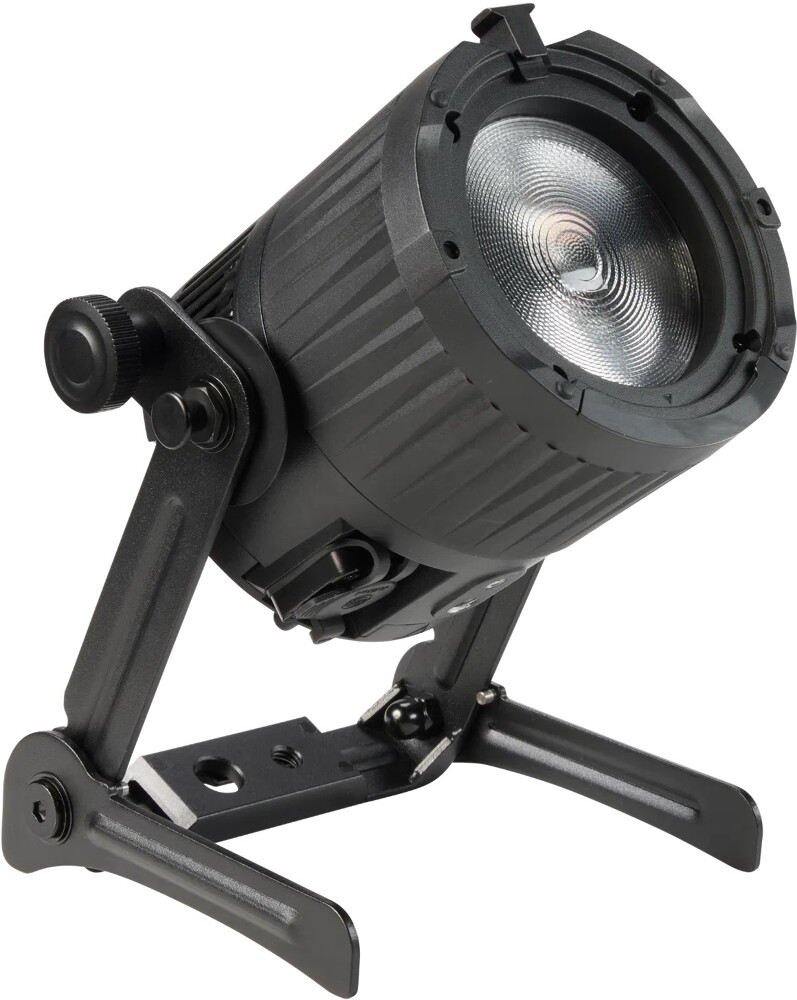

Designed to blend in. Engineered to stand out. As a compact spotlight, QuikBeam delivers the power of a 200W Tungsten equivalent, with a 13º–60º Fresnel based zoom, swappable QuikBrick batteries, and built-in PoE.
Powered by the Titan LED Engine, it provides rich, accurate color rendering. Lightweight, versatile, and future-ready, it works perfectly for events of any size, indoors or outdoors, and for film and broadcast sets alike.

Change the battery, keep going.
Our pioneering wireless technology expands into a flexible power ecosystem with more options than ever. With QuikBeam you can swap batteries in seconds, charge multiple QuikBricks at once, or run entirely without one by using PoE. Your creativity never pauses.
QuikBrick, the swappable battery for QuikBeam, powers the fixture in seconds. It supports three charging methods: via PoE while wired, in the ChargingDock, or through its USB-C port.
Faster. More flexible. 100% Wireless and beyond.
