Features

• Battery Runtime: 12 h
• Battery Lifetime: 80 % after 400 cycles
• Charging Time (nominal): 3 h 30 min
• AC Input: 100 – 240 VAC, 50/60 Hertz,: 115 VAC – 5.2 A / 230 VAC – 2.9 A
• AC Connector: PowerCON TRUE1 IN / OUT
• DC Output: 4 x 55 VDC – 1.67 A
• Data Input/Output: Ethernet
• Fixture Output: 4 x EtherCON PoE++
• Data Sockets: EtherCON IN/OUT
• Ethernet Port Speed: 100 Mbit/s
• Fail-safe Ethernet Relay: Yes
• IP Rating: IP 65
• Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
• Dimensions (L x W x D): 226 mm x 145 mm x 55.5 mm / 8.90" x 5.75" x 2.19"
• Mounting Options: 3/8" – 16 UNC, Ø 12.5 mm hole
• Weight: 2.4 kg

Description

Prep. Configure. Monitor.

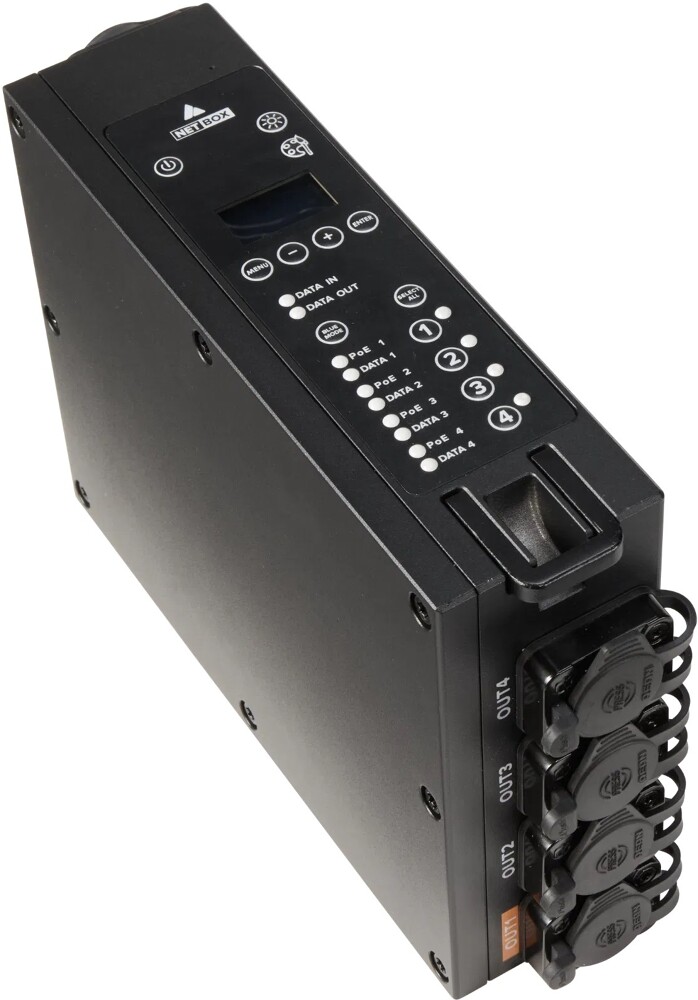

NetBox is a robust, all-in-one IP65 solution that delivers power, data, configuration, and monitoring to your QuikBeam lights. Its 4-output design enables remote PrepBox functionality.
With PrepBox functionality, you can assign IP or DMX addresses in seconds, set fixtures to Blue Mode, and configure dimming and color across multiple units without a controller, enabling individual configuration and quick selection of several lights, making prepping quicker and more efficient.
