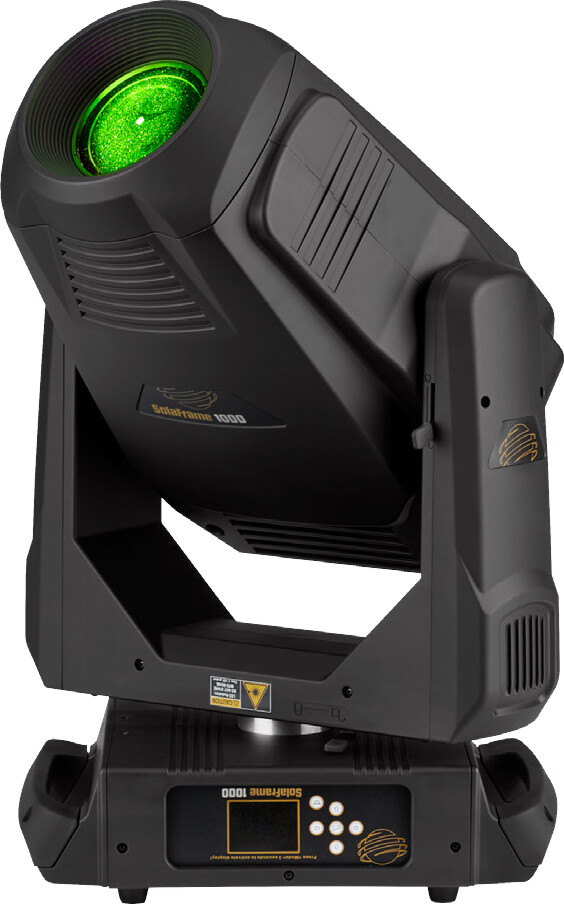

High End Systems SOLAFRAME 1000 Fixture, High CRI, Black

FROM £75.00 EX VAT
(Please note all prices are exclusive of VAT + 20% will be added to the final price)

Request a Quote


  • LED Details: High CRI white engine 480W
  • Max Lumens on the Wall: 16,000 Lumens
  • LPW: 34 Lumens per Watt
  • Native CCT: 6000k
  • Beam angle range: 12° - 40° (47° w/ Frost)
  • Pattern Projection: Rotating and indexable wheel with seven (7) patterns plus open, Fixed wheel with eight (8) patterns plus open
  • Prism: Three-facet rotating and indexable prism
  • Frost: Light frost
  • Flicker control/Hz range: 2.4 kHz or 16 kHz
  • Animation: Rotating animation wheel LED Branch Animation
  • Iris: 16 Blade Iris
  • Color Mixing: Cyan, Magenta, Yellow, CTO-Linear
  • Color Temperature: Variable down to 2800K
  • Color Wheel: Six (6) interchangeable dichroic chips plus open includes TM-30 Filter standard
  • Ambient operating temp: -10° to 45° C (14° to 113° F)
  • Input method: DMX (5-pin) or Ethernet
  • Protocols: DMX via RS-485: Art-Net or sACN via Ethernet
  • Modes (Footprint): One (49)
  • Dimming performance: 16-Bit, DMX Controlled
  • Three Modes: Standard, Studio, and Continuous
  • Stationary dBA/Full intensity
  • Standard - 42.8 dBA Background noise measured at 39.5 dBA
  • Pan and Tilt Range: 540° Pan, 265° Tilt
  • Max Pan/Tilt Speed: 2.64 sec for 540°, 1.5 sec for 265°
  • IP rating: IP20
  • Max Wattage: 900W
  • Weight: 31.3 kg


SolaFrame 1000 is the new go-to workhorse automated framing fixture for lighting designers. The High CRI Engine provides incredibly accurate colour rendering and 16,000 lumen output, full framing shutters, rotating and fixed gobo wheels, multiple color systems, 12°-40° zoom, animation effects plus all the bells and whistles required by the modern LD, the SolaFrame 1000 is a star performer in all professional production environments.
