Features

• Max. height: 6.5m (21.3')
• Max. Load: 300Kg (661 lb)
• Safety: ALS auto-lock
• Work surface: 2.2 x 2.2m (7.2 x 7.2')
• Folded height: 1.98m (6.5')
• Winch: 900Kg
• Adaptor Forks: 74.5 included
• Weight: 179 kg

Description

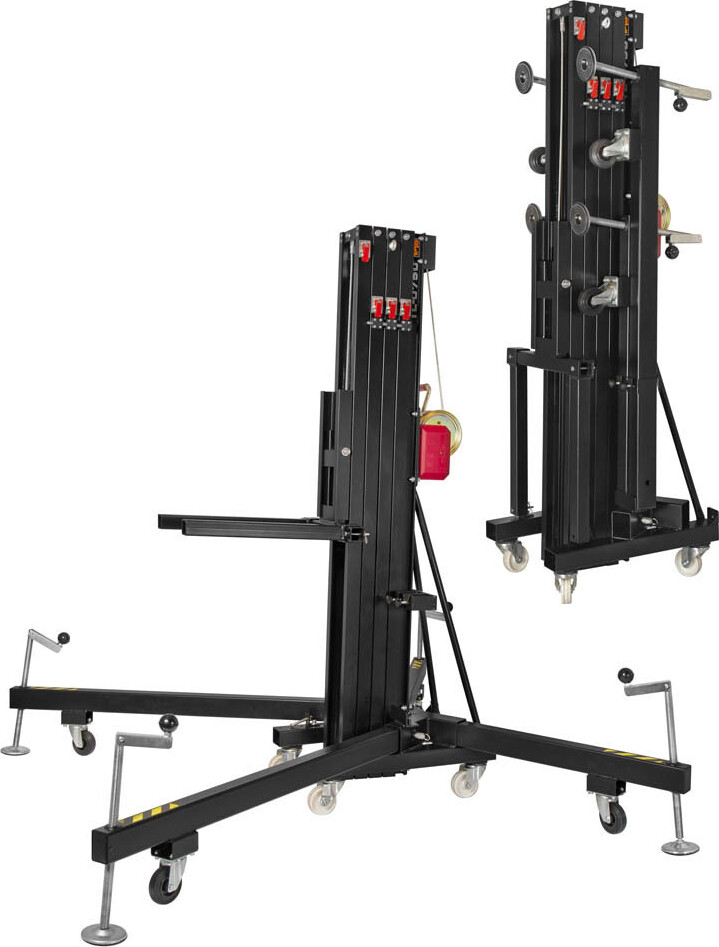

Lifter made with structural steel for the base and 5 sections of 6082-T6 aluminum alloy. Designed to lift heavy loads from the ground, and keep them at high altitudes.

This lifting tower is very easy to handle, it has 4 swivel castors at the base, and 2 more on the front legs.

It has powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope.

Black finish, with epoxy powder paint offering great resistance.

It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.

VMB offers you a wide range of accessories, which combined with this lifter allows you to increase the number of applications. One of the most used accessories, for example, is the RH-4 transport kit, which serves to tilt the lifter, horizontally and make the transportation in vans, trucks, etc. easier.

The TL-075 features the ALS Red locks of VMB, which automatically block each section while lifting. And the inertial pendulum ILS safety system for the aluminum lifting carriage. It also has the special SRS Retaining system, patented by VMB, which guarantees that the towerlift’s aluminum sections will rise in order, and most importantly: automatically.

VMB offers you a 2-year warranty and stock of spare parts for 5 years. In addition we have our own factory in Spain, where we offer service to review and repair your lifter.
